Features:
ADC Bit rate: 16 Bit Interface Type: I2C Channels: 4 Channel AN0 AN1 AN2 AN3 or 2
differential inputs
Input voltage: 2.0-5.5v
Channel input voltage :0-VDD
Continuous Mode: Only 150μA
Single-Shot Mode: Auto Shut-Down
PROGRAMMABLE DATA RATE:8sps-860sps
Input range programmed control, 7 types input ranges:
-0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V,
-2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V
I2C 7-bit addresses between 0x48-0x4B Size:18mm*28mm
Applications
Portable instrumentation
Consumer goods
Battery monitoring
Temperature measurement
Factory automation and process controls

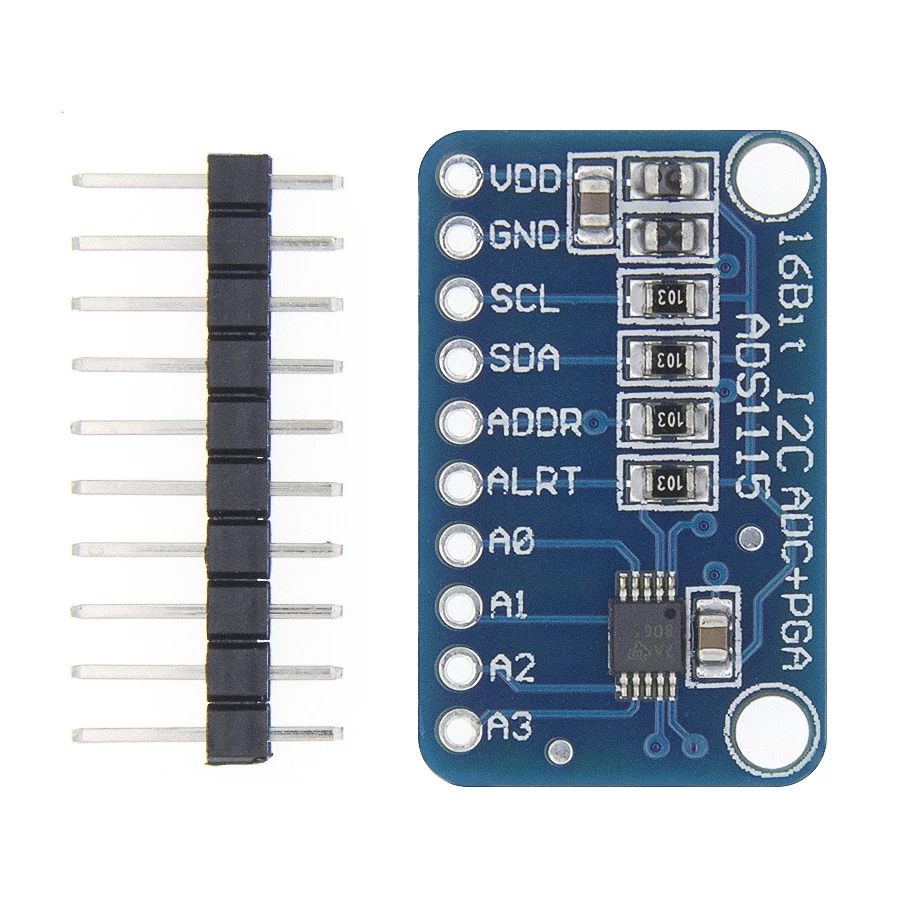

Package Included: 1 x 16 Bit I2C ADS1115 Module ADC 4 channel with Pro Gain Amplifier for Arduino RPi
