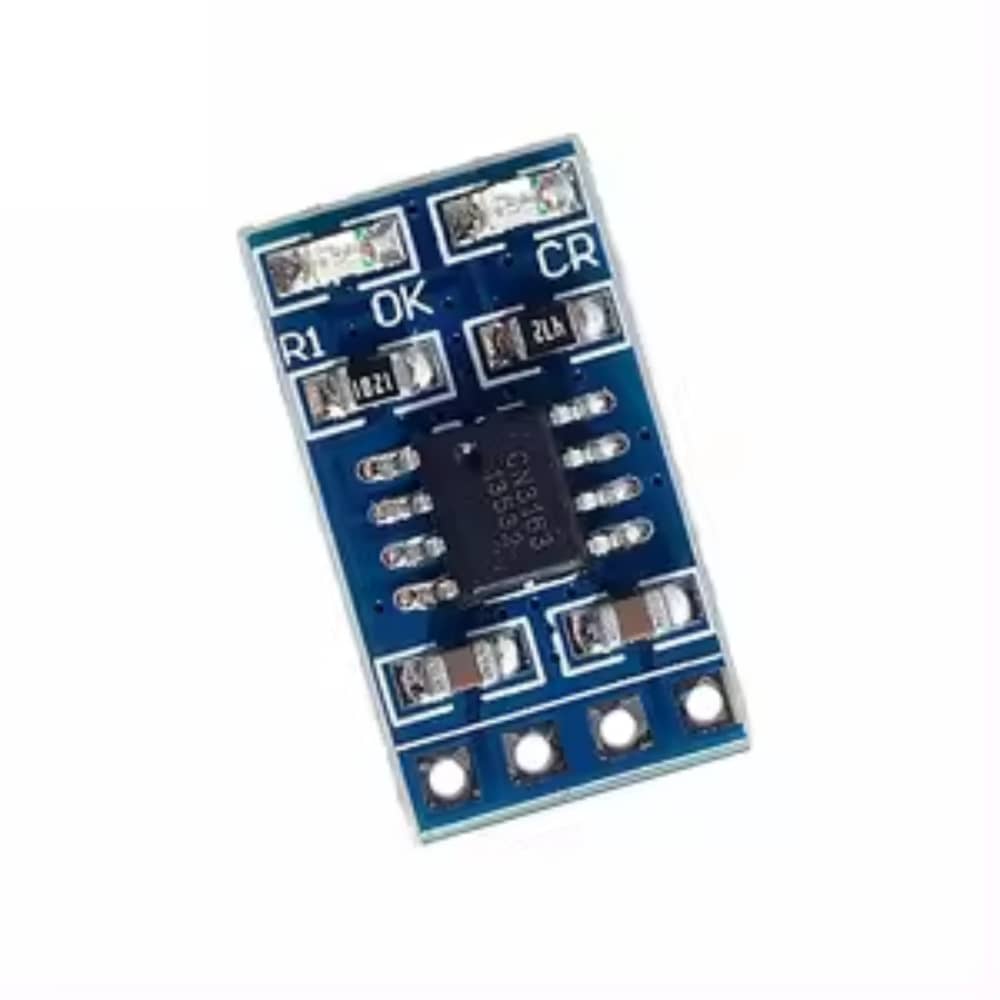

1A 5V MPPT Solar Controller SD05CRMA

DESCRIPTION

1. battery charger for solar powered system.
2. Power supply voltage DC 4.4-6V, charging output voltage DC 4.2V.
3. Maximum charging current/output current is 1A, but you can change the current by changing the value of the R1 resistor.
4. Automatically adjust the charging current according to the output capacity of the input power supply.We Are The Distributor Of TZT Brand In Hong Kong, China
5. Precharge adjustment for restoring deep discharge batteries and minimize heat dissipation at the initial charging stage.
6. Constant current/constant voltage operation with thermal regulation maximizes charging rate without overheating. TZT
7. Automatic low power sleep mode when the input power voltage is removed
8. C/10 charge termination.
9. Automatic recharge
10. Battery overvoltage protection

SPECIFICATION

Item Type: Battery Solar Charge Module TZT

LED Indicator: “CR” LED is charge status indicator, “OK” LED is charged OR constant voltage mode

Dimension: 18×10.16×2.7mm

Options: with Pin, without Pin

Weight: 0.9g(with Pin), 0.6g(without Pin)

INSTRUCTION

The adaptive unit on the module can adjust charging current automatically based on the output capability of input power supply, so it is for the solar-powered systems, or the applications that need to charge -ion battery or battery with an input power supply whose output capability is limited. We Are The Distributor Of TZT Brand In Hong Kong, China If your solar panel is 5V, then you can use it directly. Of course, the module can also be powered by a 5V DC power supply.
