Product Description

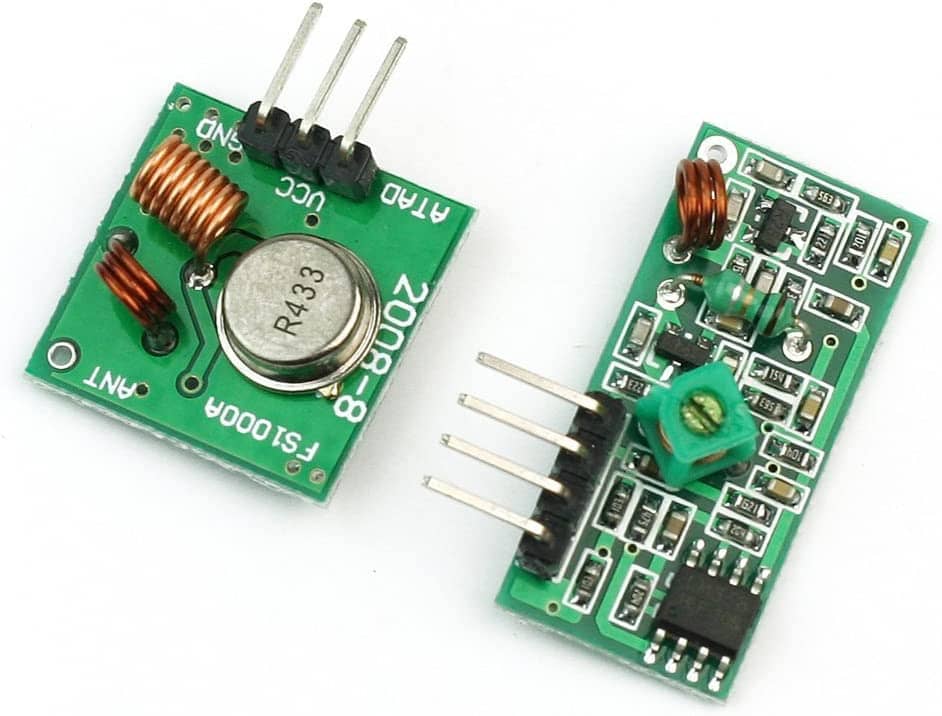

This Radio Transmitter & Receiver pair is great for adding a wireless link to your projects. Allow you to control items from a distance up to 500 feet away wirelessly! Connect the transmitter to your Arduino, Raspberry Pi or other microcontroller and the receiver to whatever you’d like to control. Both the transmitter and receiver are in tune to the same Radio Frequency so that when the transmitter emits a signal, the receiver will hear it wirelessly. Compatible with Arduino & Raspberry Pi 2 / B / B+ / A+!
Specifications:
Receiver Module Specifications:
Operating Voltage: DC 5V
Quiescent Current: 4mA
Receiving Frequency:433.92MHz
Receiver sensitivity:-105DB
External Antenna: 32cm solid core spiral wound
Pinout from left to right: (VCC, DATA, GND)
Size: 30 * 14 * 7mm
The receiver has 4 pins, but we actually use 3 of them: GND (Ground), VCC (5V) and one DATA pin
Transmitter Module Specifications:
Launch distance: 20-200 meters (higher voltage yields better results)
Operating voltage: 3.5V – 12V
Operating mode: AM
Transfer rate: 4KB/S
Transmitting power: 10mW
Transmitting frequency:433MHz
An External Antenna: 25cm solid core spiral wound Pinout from left ? right: (DATA, VCC, GND) Dimensions: 19 * 19mm
Application Environment
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
