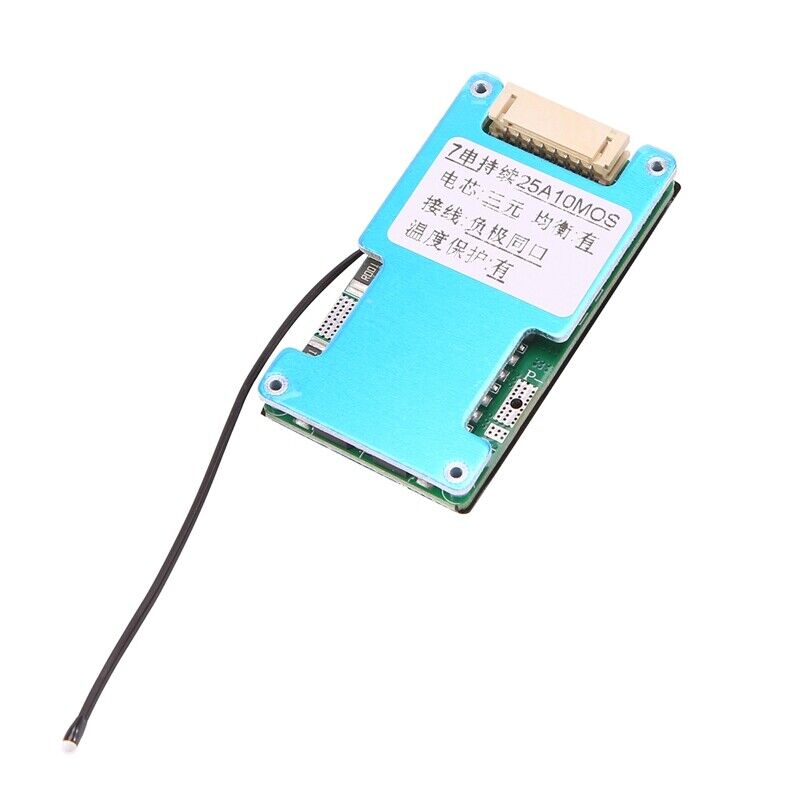

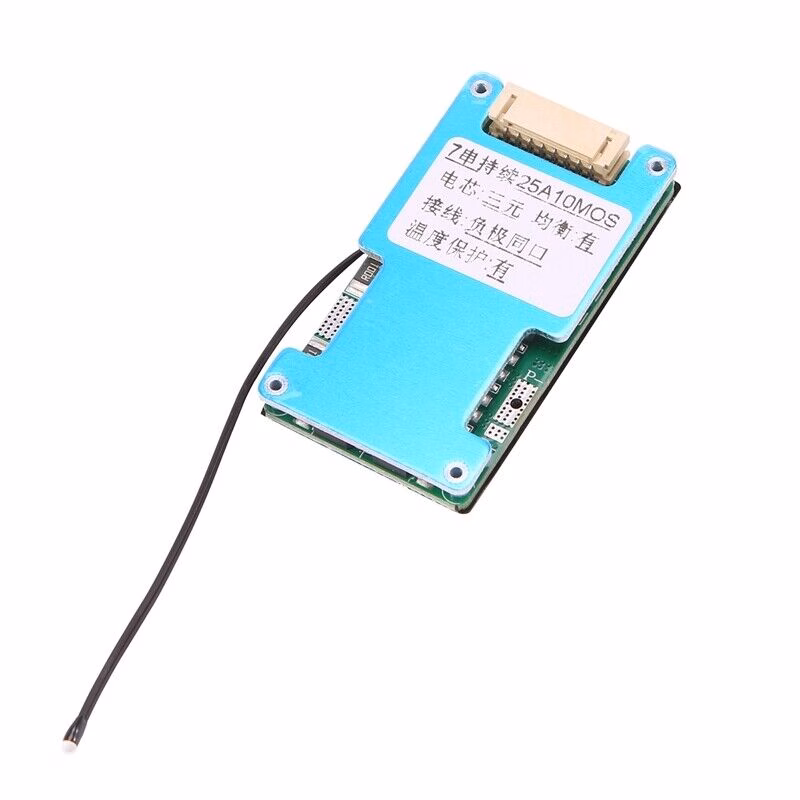

BMS 7S 25A Li-ion Lmo Ternary Lithium 18650 Battery Charge Protection

SKU: 1253

20 People watching this product now!

Description

XR-67S-JH-V1. 0-G

Battery

Type

Ternary/seven strings/24V.

Wiring

Wiring mode.

Same mouth..



Over-discharge voltage of single battery.

2.7 V soil 0. 08V

Discharge

Continuous operating current.

25A



Instantaneous protection current.

60A



Overcurrent recovery condition.

Recharge to resume or disconnect the load



Short circuit recovery condition.

Recharge to resume or disconnect the load



Overcharge voltage of single battery

4.25 V士0.025V



Continuous charging current.

20A

Charge

Charge equalization voltage.

4.15 V $ 0.025 V.



Charge equalizing current.

40mA



Charger voltage.

30 V (recommended).

Over-

Charging overtemperature.

50°C

temperature protection

Discharge overtemperature.

70°C



Self-comption power consumption for operation

≤30UA



Internal resistance Main circuit conduction internal resistance

≤20m2

tempeature

Temperature range.

-40 to + 80 ° C.

Line break protection

Wire break protection.

Have

Wire arrangement

Wire arrangement size.

2.0MM Pitch/40 CM long

Amerson

Product appearance dimensions

60*33*7MM
