The BT136-600E is a triac (triode for alternating current) designed for general-purpose bidirectional switching and phase control applications. It is commonly used in AC power control systems, such as dimmers, motor speed controllers, and static relays. The BT136-600E is known for its robust performance and ability to handle moderate power loads.
Key Features:
- Voltage and Current Ratings:
- Repetitive Peak Off-State Voltage (V<sub>DRM</sub>): 600V
- RMS On-State Current (I<sub>T(RMS)</sub>): 4A (at T<sub>tab</sub> ≤ 110°C)
- Surge Current Rating (I<sub>TSM</sub>): 25A (for one cycle, 50Hz)
- Trigger Characteristics:
- Maximum Gate Trigger Voltage: Approximately 1.5V
- Gate Trigger Current (I<sub>GT</sub>): Typically less than 5mA, allowing easy triggering with low-power control circuits.
- Dynamic Performance:
- Rate of Rise of Off-State Voltage: 5V/μs (typical)
- Rate of Rise of On-State Current: 50A/μs
- Thermal & Environmental Ratings:
- Operating Temperature: -40°C to 125°C
- Package Type: TO-220AB, which allows for efficient heat dissipation and easy mounting onto heatsinks.
- Gate Sensitivity:
- Sensitive gate, allowing for triggering using low gate current, making it suitable for interfacing with logic-level control circuits or microcontrollers.
Applications:
- Dimmers: For controlling the brightness of lighting systems.
- Motor Speed Controllers: Used in applications like fan regulators and other motor-driven devices.
- Static Relays: Suitable for switching AC loads with reliability and ease.
Package Information:

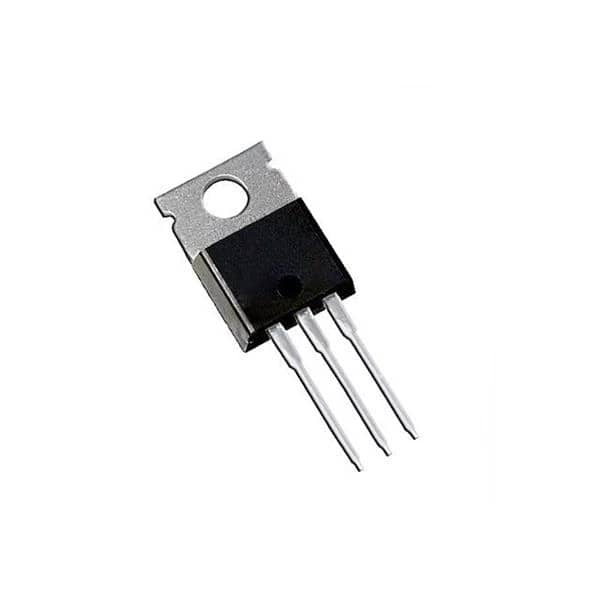

- The BT136-600E comes in a TO-220AB package, a widely used format in power semiconductor devices. It features three pins: MT1, MT2 (main terminals), and gate. The TO-220AB form factor allows easy mounting on heatsinks for improved thermal management.
