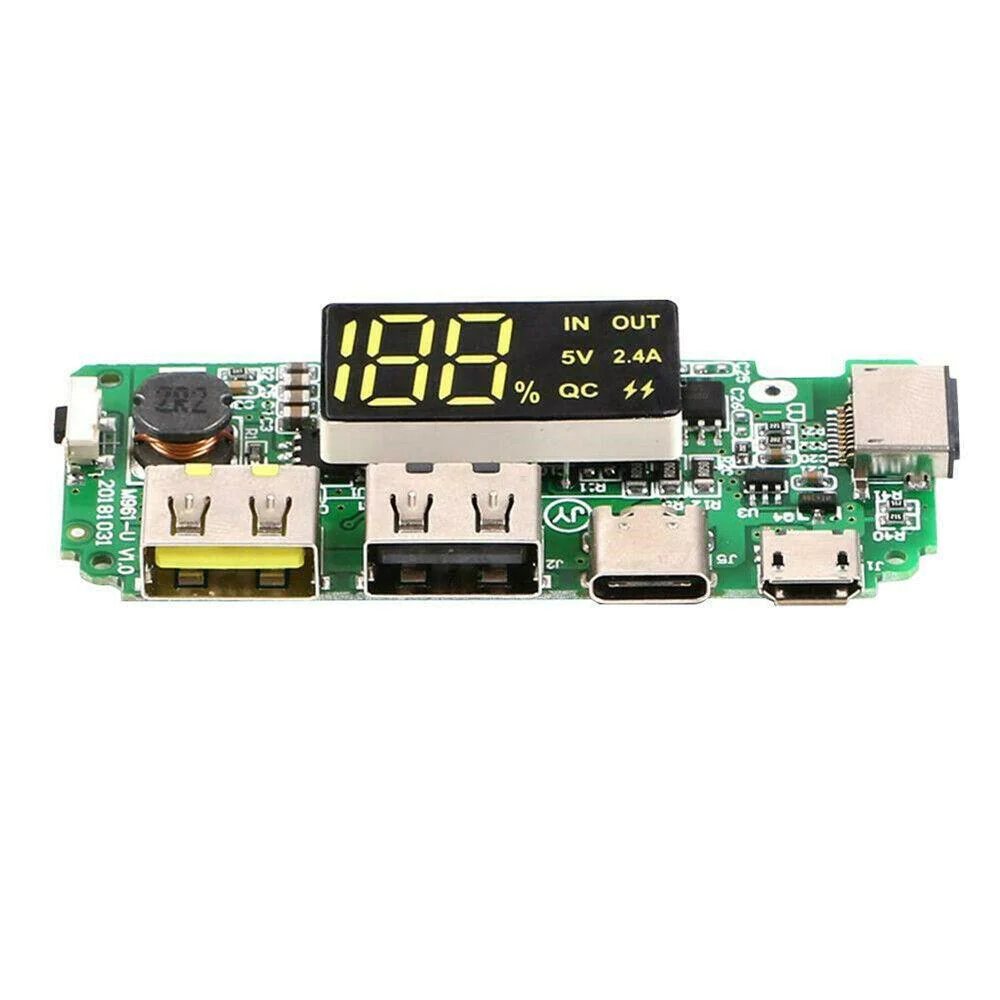

Dual USB 5V 2.4A Charge Board Micro USB Type-C 18650 Power Bank Box Charging Module with LED Screen Display

Dual USB 5V 2.4A Charge Board Micro USB Type-C 18650 Power Bank Box Charging Module with LED Screen Display

Parameter:
Size: 6.5 * 2.5 * 0.1cm
Weight: 10.8G
IR of PCM : ≤65 mΩ
Allowed 0V change: Yes
Constant current: 2.4A
Dual output current: 5V 2.4A
Input voltage B+ to B-: 3.0 – 4.2V
Charging cable: support three type of USB Cables for iPhone Lightning & Andriod Type-C Micro USB
Button function: Press and hold the button after standby, the LED digital screen displays the power

Specification:

[LED Indicator Display]
The LED digital screen displays the current battery charge while charging.
When discharging, the LED digital screen displays the current power, and the display is saved in about 30 seconds (double-click the button to resume display).
The system will provide an accurate battery indication after a complete charge and discharge.

[Prevent Overcharge Protection]
Detection voltage: 4.20±0.05V
Release voltage: 4.100±0.05V
Detection delay time: <200 ms

[Prevent Overdischarge Protection]
Detection voltage: 3.0±0.10V
Release voltage: 3.10±0.10V
Detection delay time: <100 ms

[Short Circuit Protection]
Short detection delay time: <50μS
Release Conditions: Cut off load

[Normal Current Consumption]
Normal current consumption of PCM: Max 60μA
Stanby current consumption: Max 50μA

[Suggest Working Conditions]
Max continuous charge/discharge current: 1.5/2.4A
Suggest working temperature: -5～45℃

Note:
The positive pole of the battery is connected to B+ and the negative pole is connected to B-, do not reverse it. If it is reversed, it will burn out!!!!
