Capacity Range: 0-1.6MPA
Comprehensive Precision:0.5%FS;
Output Signal:4-20mA;
Overload Capacity:2-4 times
Using Temperature Range:-40 to 110℃;
Power Supply:8-32VDC;
Pressure Medium:Non-corrosive liquid or air;
Temperature Effect on Zero:Typical:0.02%FS/C;Maximal:0.05%FS/C;
Temperature Drift on Sensitivity:Typical:0.02%FS/C;Maximal:0.05%FS/C;
Shock Resistance:1000g;
Housing Material:Stainless Steel;
Pressure Connection:DIN type;
Blast Proof Class:ExiaIICT6;
Long-term Stability:less than 0.1%FS/year;
Defend Grade:IP68;
Pressure Connection:G1/4;
Cable Connection:Red(IN+); Black(IN-)
Cable Length: 1M
Applications:
Air compressor and pump;
Liquid pressure and air pressure system;
Energy resources and water treatment system;
Refrigerating equipment;
Automatic detection system;
Locomotive brake;
Environmental protection field;
Agriculture application and mechanical automation.
Package include:

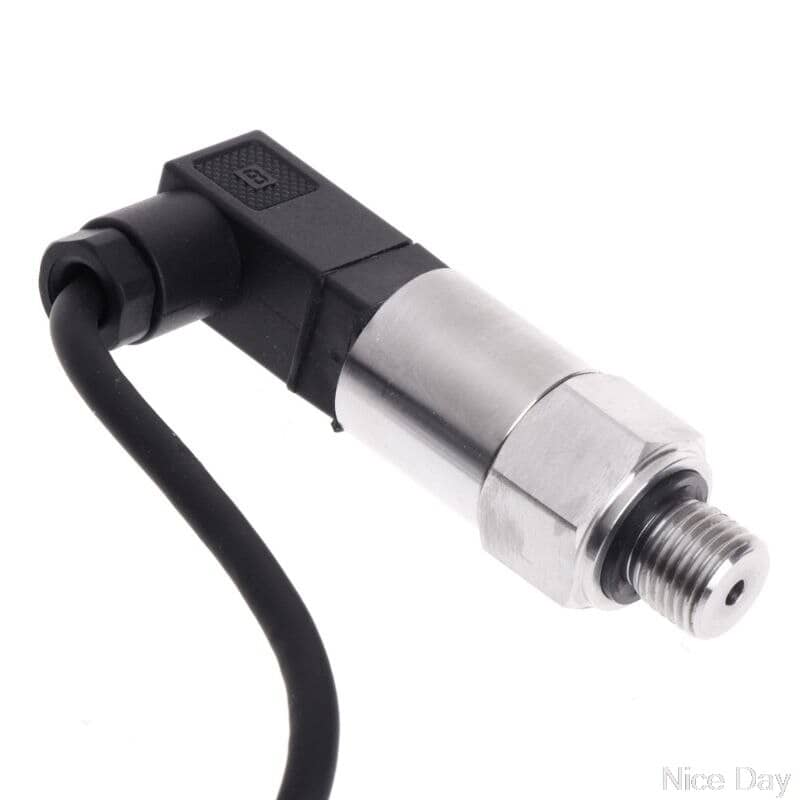

1x Pressure Transmitter
