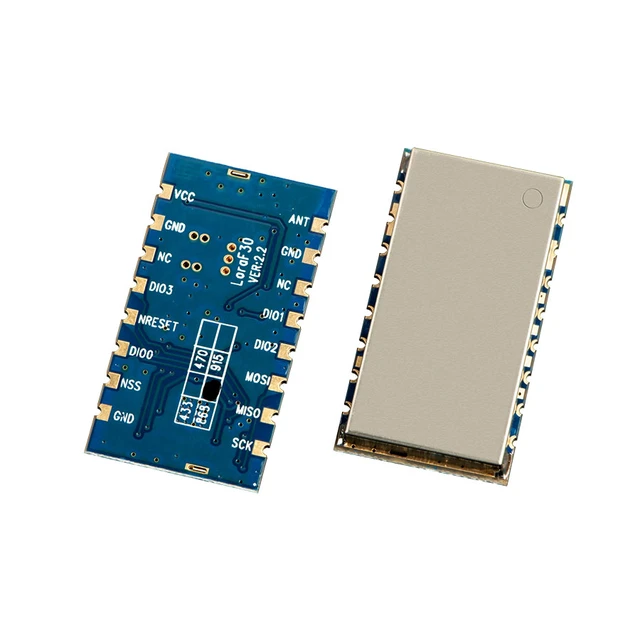

Lora1278F30 – Long range 6~8Km high power 1W 433MHz

Feature:

• 433-460MHz

• Sensitivity up to -139 dBm

• Maximum output power: 30dBm

• 13mA@receiver mode

• Sleep current <10uA

• Data transfer rate：@FSK,1.2-300kbps

                                  @Lora TM，0.018-37.5kbps

• Lora TM, MSK, GFSK, and OOK Modulation mode

• 127 dB Dynamic Range RSSI

• Packet engine up to 256 bytes with FIFO and CRC

• Hopping frequency

• Operating Temperature Range：-40~ + 85 °C

• Built-in temperature sensor and low battery indicator

• 3.0-6.5 V Power supply

• Excellent blocking immunity

Application:

• Remote control

• Remote meter reading

• Home security alarm and remote keyless entry

• Industrial control

• Home automation remote sensing

• Individual data records

• Toys control

• Sensor network

• Tire pressure monitoring

• Health monitoring

• Wireless PC peripherals

• Tag reading and writing
