A float switch is a type of level sensor, a device used to detect the level of liquid within a tank. It is a simple structure, easy to use level control device; moreover, it is neither a complicated circuit nor does it provide power. This switch has a mechanical switch than the average small sized switches.
As long as the material used is in the correct shape and nature of any liquid or pressure, you can control the temperature. Applications of this Switch include shipbuilding industry, generating equipment, petrochemical and food industry, water treatment equipment, dyeing, and finishing industry, and hydraulic machinery.
Features:
- Long-lasting life
- Easy to use
Specifications:-
| Max. Contact Rating |
10 W |
| Max. Switching Voltage |
220 V |
| Max. Switching Current |
0.5 A |
| Max. Breakdown Voltage |
220 VDC |
| Max. Carry Current |
1 A |
| Max. Contact Resistance |
100 m |
| Temperature Rating(C) |
-10 ~ 60 |
| Float Ball Material |
P.P. |
| Float Body Material |
P.P. |
| Length of Body (mm) |
46 |
| Outer diameter (mm) |
17.5 |
| Cable Length (cm) |
35 |
| Weight (gm) |
8 |
Package Includes:

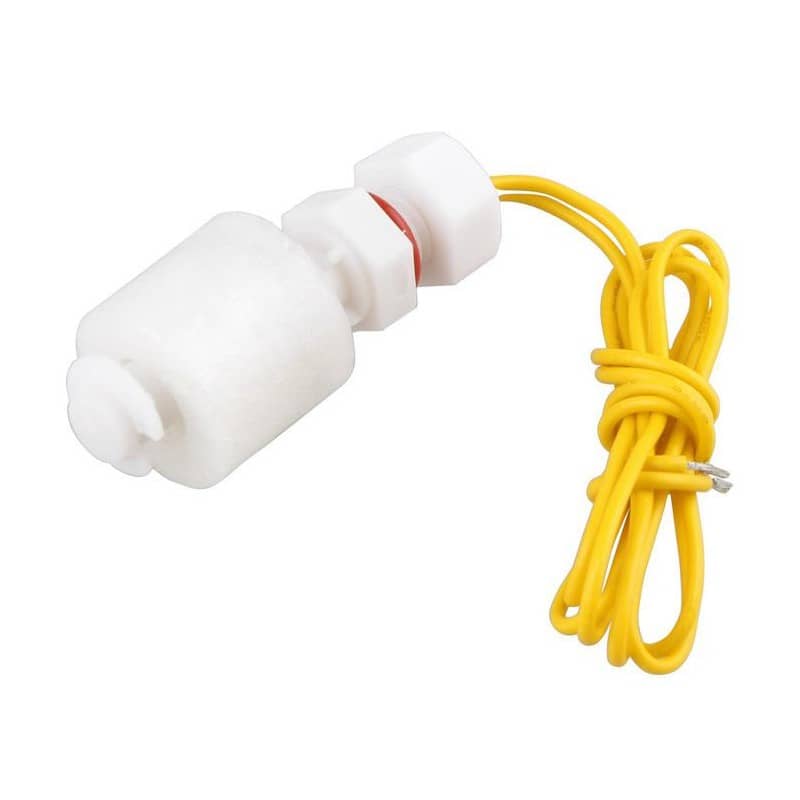

1 x P35 Small Float Level Control Switch Plastic Float Switch.
* Product Images are shown for illustrative purposes only and may differ from actual product.
