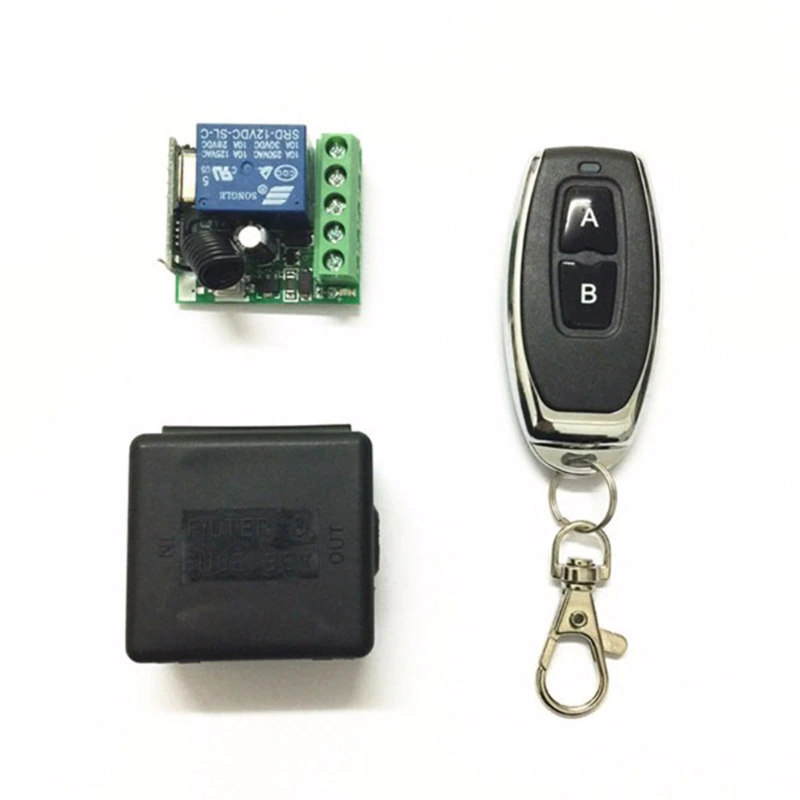

Technical Data Of Receiver:
Input Power:DC10V-14V
Standby Current:<5MA
RF Frequency:315M or 433M
RF working mode:superheterodyne
Receive sensitivity: >97dbm
Transmitting distance:>100m ( open space)
Decoding mode:MCU software decoding
Remote storage:25pcs
Support remote type: Learning code, Fixed code(Rolling code can be design)
Working mode:Momentary, Toggle, Latching Time delay (5s ,10s ,15s )
Wiring type:fixed terminal
Output Terminal :NO , NC , COM
Dimension of PCB:35*30*18mm (L,W,H)
Wiring diagram 1:
+V : 12V + input ;
– V: 12V – input ;
NO: Output , normal open;
COM:Output , common ;
NC: Output , normal close.
Specifications Of The Remote Control:
Operating frequency: 433.92MHz
Power by 3V Coin Cell Button Battery (Battery included ),
Material: PVC.
Button: 2 buttons
Size: 59mm x 28mm x 8mm;
Operating voltage: 3V ;
Operating Current: 12mA
Transmitting power: 10mw
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 80m
