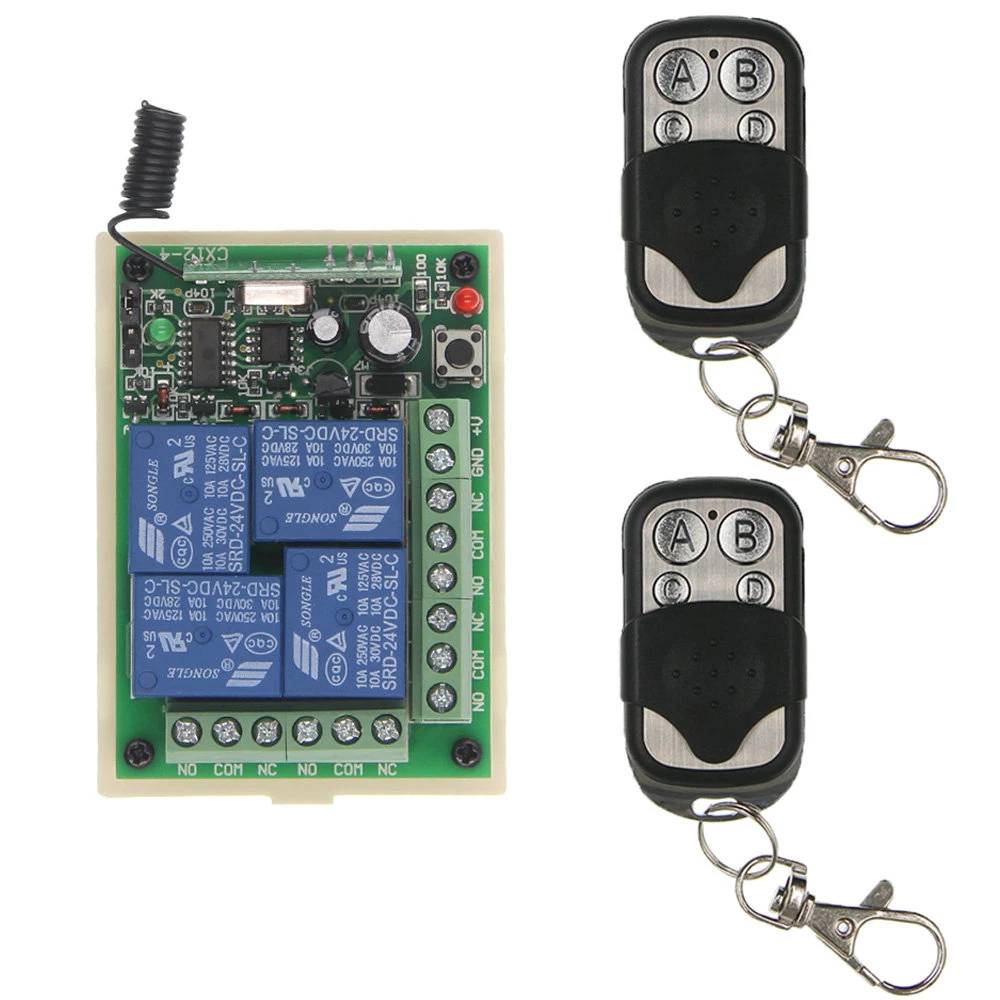

Universal Wireless Remote Control Switch DC 12V 4CH relay Receiver Module With 4 channel RF Remote 433 Mhz Transmitter With Two Remote Control

SKU: 0096

 2,300.00

In stock

In stock

16 People watching this product now!

Description

Technical Data:

Input Power:AC 220V

Standby Current:<8.5MA

RF Frequency: 433M

RF working mode: superheterodyne

Receive sensitivity: > 97 dbm

Transmitting distance: More than 15 meters

Decoding mode: MCU software decoding

Learnable Transmitters: 1-16 transmitters

Support remote type: Learning code 1527

Switching Modes:

Both Momentary & Toggle

Wiring type:fixed terminal

Switch Output : normally open & normally closed.

Dimension of PCB
(L,W,H)
35*30*18mm
1 3/8 * 1 3/16 * 11/16″

Switch Output:

NO: normal open

COM: common

NC: normal close



Wire port :

NO: normal open

COM: common

NC: normal close



HOW TO USE:

On this products details page, there is a demonstration video available.

You can also see the video at this URL:

youtu.be/k06q76qthBw

Working Modes explanation:

Momentary Mode:

Push the remote button , the relay activates, release the remote button the relay deactivates.

Toggle Mode:

Push and release the remote button , the relay activates.
Push and release the remote button again and the relay deactivates.



Clearing All Stored Transmitters:

**Note**

After clearing the stored transmitters, all transmitters will need to be relearned by the receiver.

Push the learning button on the receiver 8 times , and the codes will be cleared .

Learning the transmitter :(momentary Mode)

Programing a 2 button transmitter as momentary mode transmitter.

STEP 1

Push and release the learning key on the receiver ONCE.

Wait for a moment , the LED will turn off , indicating you entered the learning state.

STEP 2

Push and release the first button on your transmitter, the LED on the receiver board will flash on then off indicating the button was learned.

STEP 3

Press and release the second button, watching the LED go on and off again.

Wait 3 seconds, the LED will turn on again , indicating system is ready for use.

Learning the transmitter : ( Toggle Mode )

Programing a 2 button transmitter as toggle.

STEP 1

Press and release the learning key on the receiver TWICE.

Wait for a moment , the LED will turn off , indicating you entered the learning state.

STEP 2

Press and release the first button on your transmitter, the LED on the receiver board will flash on then turn off.
Indicating the button was learned.

STEP 3

Next press and release the second button, watching the LED go on and off again.

Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use

**Notice**
two button transmitters can only be used as toggle or momentary.
One mode per 2 button transmitter.

(Please note: You let the control panel to learn the remote control, you must press the “A” and “B” button;
Rather than just pressing one of them )

However you can program another transmitter in the other mode.
