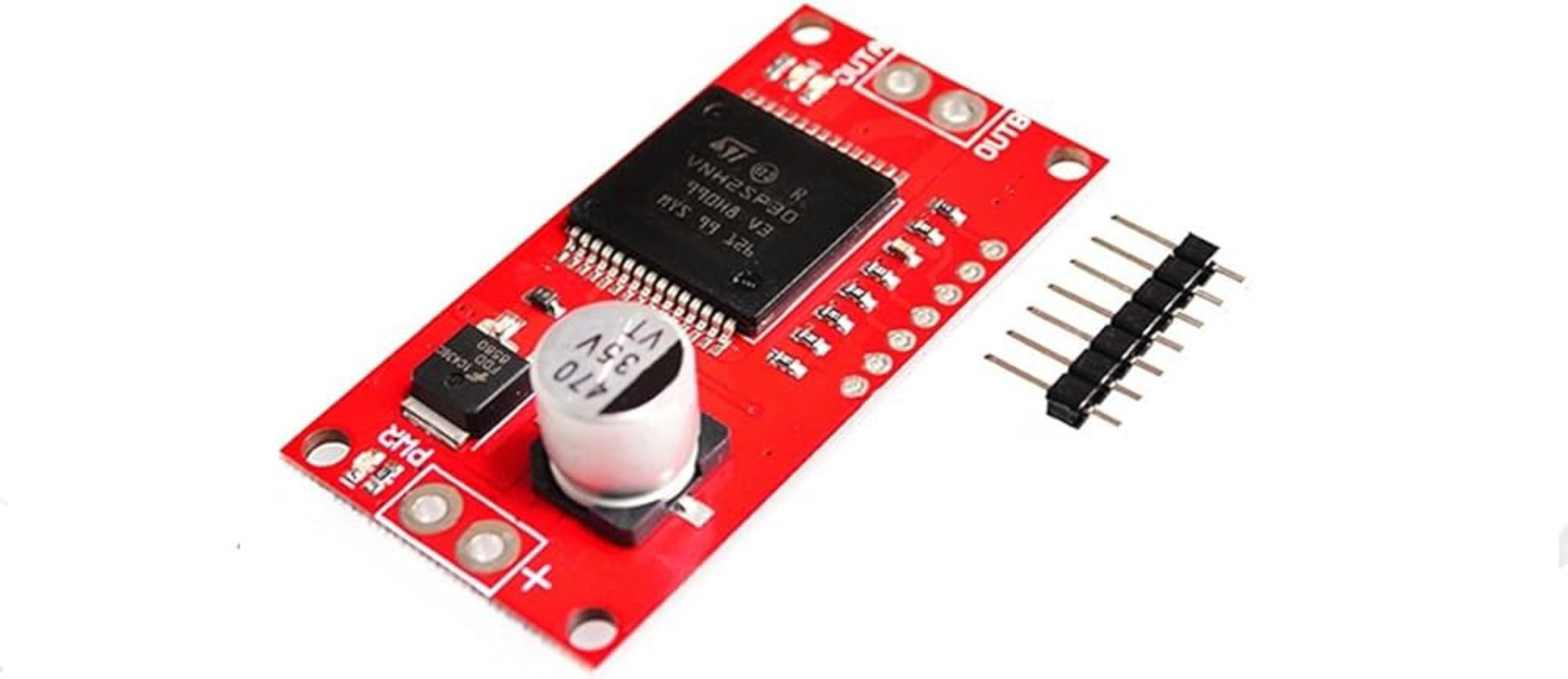

VNH2SP30-Monster Moto Shield 30A Stepper Motor Driver Module

SKU: 0117

 1,000.00  980.00

In stock

In stock

11 People watching this product now!

Description

Description:

This is essentially a ramped-up version of our Ardumoto motor driver shield. For this monster shield, we’ve replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We’ve also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires. (This is a Single Chip)

Note:
When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.

Specification:

Driver Model

Monster Moto Shield VNH2SP30

Operating Voltage

12 ~ 16V DC

Peak Current

30A

Continuous Current

14A

No. of Channels

1

Over-Current Protection (A)

Yes

Thermal Protection

Yes

LED Indicator

Yes

Cooling Fan

No

Arduino Sheild

No- can be used with Wire connection

Features:

  • Current sensing available to Arduino analogue pin
  • MOSFET on-resistance: 19 mΩ (per leg)
  • Maximum PWM frequency: 20 kHz
  • Thermal Shutdown
  • Undervoltage and Overvoltage shutdown.

Package Included:

1 x 30A Mini VNH2SP30 Stepper Motor Driver Monster Moto Shield Module
