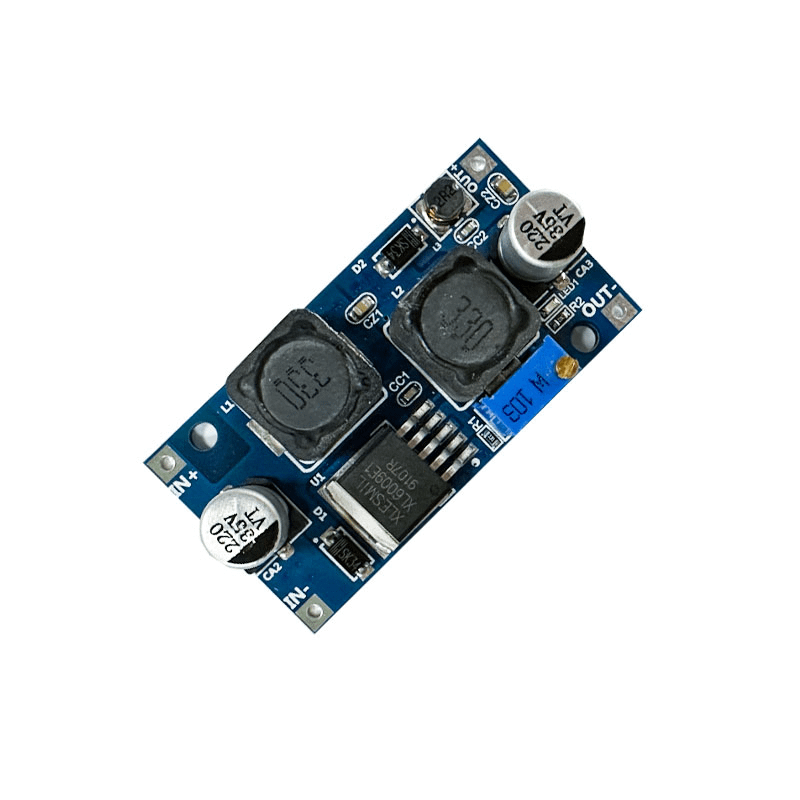

This is an auto DC-DC step up / down or buck / boost converter power module with high-precision potentiometer for adjusting output voltage, capable of driving a load up to 3A with extra cooling. Good to stabilize inconsistent voltage source like battery, solar panel, wind generator and etc.
[Specification]
- Input voltage: DC 5V-32V
- Input current: 3A maximum (Output current must alway below input maximum current)
- Output voltage: DC 1.3V-35V, (Adjustable)
- Output current: 0-3A (Without extra cooling, recommend 2A max)
- Conversion efficiency: <94%
- Switching frequency: 400KHz
- Output ripple: 50mV (Larger when voltage or current higher)
- Operating temperature: -40 degC to +85 degC
- Size: 48x25x15mm
- Weight: 15g
[Highlight]
- Auto DC-DC step up / down converter power module
- Output voltage build in high-precision potentiometer for adjustment
- Output voltage remian constant even input voltage change
- 400KHz switching frequency
- Up to DC 35V, 3A output
- Good to stabilize inconsistent voltage source like battery, solar panel and wind generator
