Home » Shop » XL7015 V2 DC-DC Converter Step-down Module 5V-80V Wide Voltage Input 7005A LM2596
XL4016E1 ₨ 150.00
Back to products
DC-DC 24V/12V To 5V 5A Step Down Power Supply Buck Converter Replace LM2596S Adjustable USB Step-down Charging Module ₨ 500.00

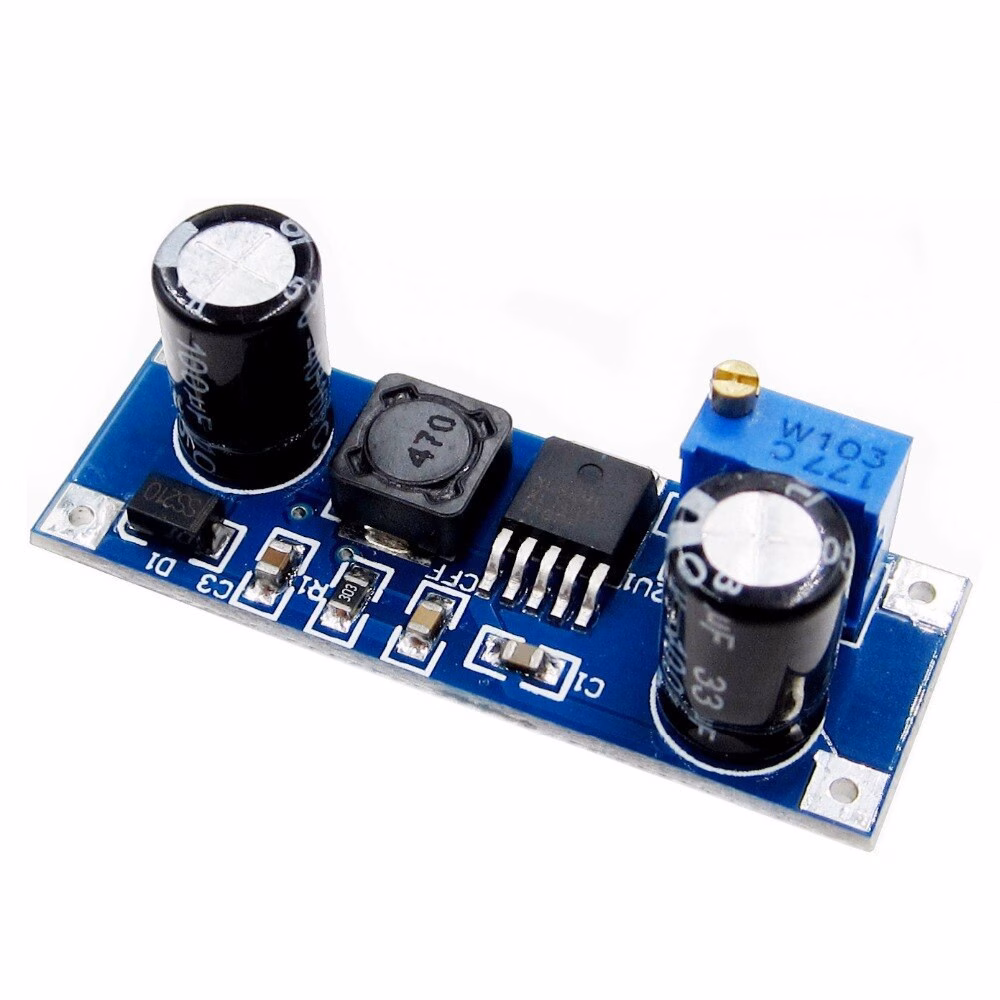

XL7015 V2 DC-DC Converter Step-down Module 5V-80V Wide Voltage Input 7005A LM2596

₨ 250.00

In stock

Add to wishlist
Compare
Add to wishlist
0 People watching this product now!
SKU: 0334 Categories: Buck Module, Module

Share this:

  • Click to share on Twitter (Opens in new window)
  • Click to share on Facebook (Opens in new window)
Share:
  • Description
  • Additional information
  • Shipping & Delivery
Description
XL7015 DC-DC step-down module is a highly efficient, high-voltage step-down DC- DC converter that can deliver up to 0.8A output current capability, low ripple, excellent line regulation and load regulation, input voltage to a maximum of 80V, far more than 2596 modules. Chip built a variety of protection mechanisms. It can be applied to electric vehicle controllers.

1. 5V to 80V wide input voltage range;

2. The output voltage is adjustable from 5V to 20V;

3. The minimum pressure drop 1V;

4. The maximum switching current of 0.8A;

5. Recommended output power less than 7W;

6. Built-in thermal shutdown protection, output short circuit protection, overcurrent protection;

7. The excellent linearity and load regulation;

Hardware introduction and notes
Board size: 16mm * 44mm;

Wiring
1. VIN: input voltage (5V-80V);

2. GND: the input voltage ground terminal;

3. VOUT: Output voltage terminal (5V-20V);

4. GND: output voltage of the ground terminal;

Related

Additional information
Weight 0.00 kg
