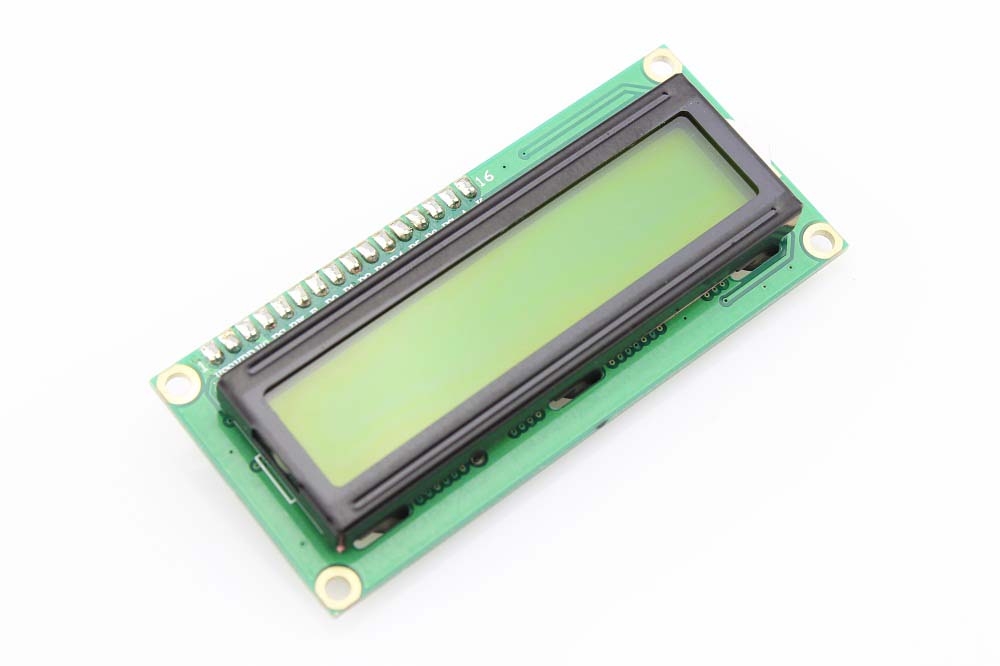

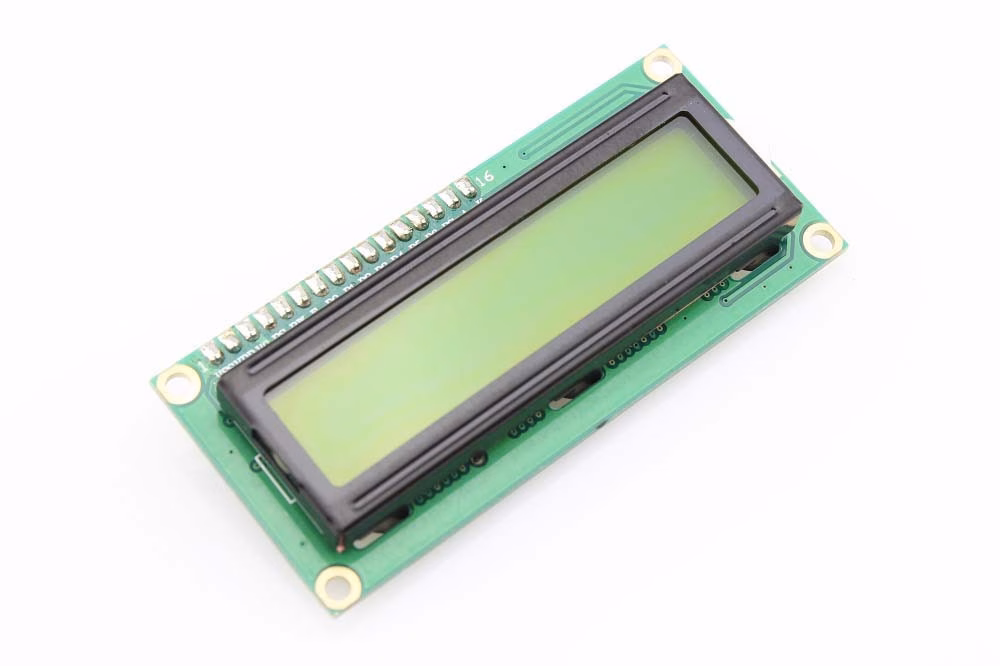

1602 LCD Module

SKU: 0853


In stock

In stock

11 People watching this product now!


16 * 2 Lcd module is 16 characters wide and 2 row character Lcd module made of high quality   material. It has 16 pin connecter with blue black light. It can be easily controlled by MCU and can be used in any embedded systems, industrial device and hand held equipment’s.

Color Black + Green
LCD Size About 2.6inch
Display Format 16×2 Character
Interface 6800 4-bit Parallel , 6800 8-bit Parallel
Connection Pin Header
Visual Area 64.50×14.50mm
Active Area 55.45×10.85mm
Character Size 2.95×5.15mm
Dot (Pixel) Size 0.55×0.50mm
Dot (Pixel) Pitch 0.60×0.55mm
IC Package COB
Display Type STN-LCD Blue
Touch Panel Optional No
Sunlight Readable No
Response Time(Typ) No
Contrast Ratio(Typ) No
Colors No
Viewing Angle Range No
Brightness(Typ) No
Viewing Direction 0.25
Backlight Current (Typ) 15mA
Power Supply(Typ) 3.3V, 5V
Supply Current for LCM(Max) 1500uA (Vdd = 5V ), 1250uA ( Vdd = 3.3V)
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
