MG 90S Servo Motor

SKU: 0854

 400.00  392.00

In stock

In stock

15 People watching this product now!

Description

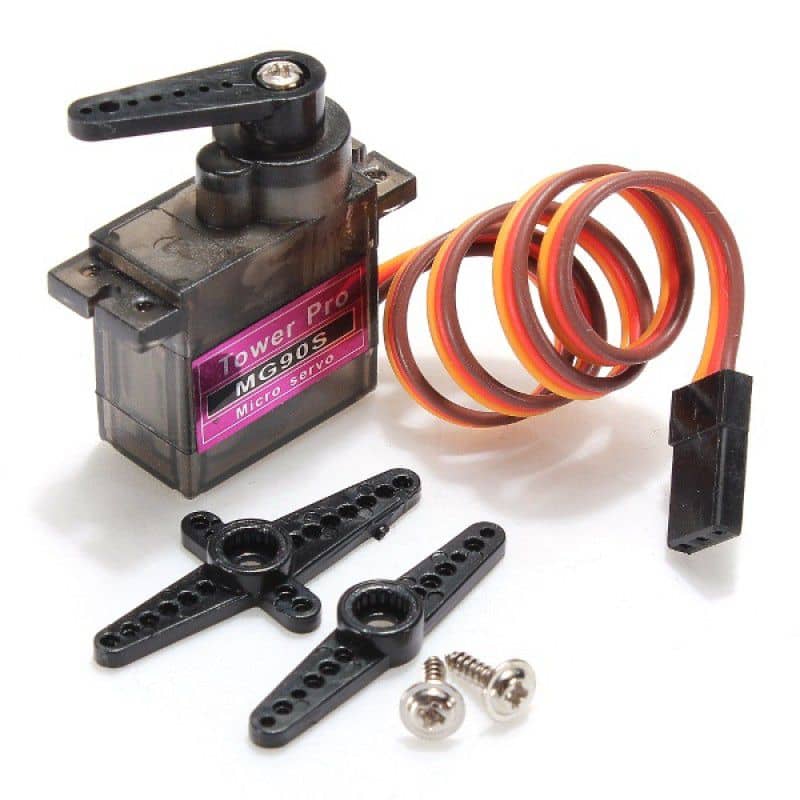

The MG90s servo is a metal  motor gear that is perfect for high-end application. It can rotate approximately 180 degrees.It comes with with 3 arms and screws and with pre-soldered female wires with over torque protection for durability . The  PWM (Signal) is Orange , VCC (Power) is Red , GND (Ground) is Brown . It can be used for making spider robot, biped robot etc

Model Number MG90S  Servo
Material Plastic
Gear Type Metal
Operating Voltage 4.8 – 6.0 V
Stall torque (4.8V) 1.8kg/cm
Stall torque (6.6V) 2.2kg/cm
Operating speed (4.8V) 0.10sec/60degree
Operating speed (6.0V) 0.08sec/60degree
Temperature Range  -30 to +60 Degree C
Dead Band width 5us
Servo Wire Length 25 cm
Color Black
Rotation/Support  Dual Bearings
Rated Voltage 5 V DC
Weight 13.4g
Size 22.8 x 12.2 x 28.5mm
