Ultra-small SX1278 LOra spread / power meter reading module / 5km wireless transceiver module

SKU: 0067


In stock

In stock

14 People watching this product now!


XL1276-D01 wireless module is a wireless chip using SEMTECH’s latest LoRa modulation technology.
In addition to the traditional GFSK modulation technology, the module uses LoRa (long-range) spread spectrum technology, with ultra-long-range spread spectrum communication
The module has high receiving sensitivity and super high anti-interference
Receiving Distance as far as 5Km. 32M high-precision 10ppm passive crystal.
The standard SPI interface,so module can be easily embedded into the existing product or system.
-FSK / GFKS technology, LoRa (remote) spread spectrum technology
-Half duplex communication
-strong anti-interference (channel rejection ratio: 56db)
-high receiving sensitivity -139dbm. (32M passive 10ppm crystal)
-ISM multi-band, do not need to apply for free use of frequency.
-multi-frequency options, a variety of transmission rates can be used in FDMA and FM technology.
-intelligent reset, low voltage monitoring, timing wake-up, low power mode, sleep mode
-low power to accept the current: 10-12mA
-256-bit FIFO TX / RX
-RSSI channel detection function
-Transfer mode: FIFO / direct mode (recommended FIFO packet mode)
-configuration: AFC / airborne wake-up function / low power consumption / carrier sense / FEC error correction / AEC encryption
-ultra-long distance transmission open up to 5KM.
-Module size: 22.8 * 22.7 * 4.2mm

1) remote control and remote data acquisition system
2) wireless meter reading (water meter, electricity meter, gas meter)
3) used for oil field, mining area, site, factory and other original 485/232 interface system
4) Industrial data acquisition, transmission, intelligent control system
5) wireless alarm system
6) smart furniture system
7) Baby Monitoring System / Hospital Paging System
8) wireless small data transmission system


Packing List:

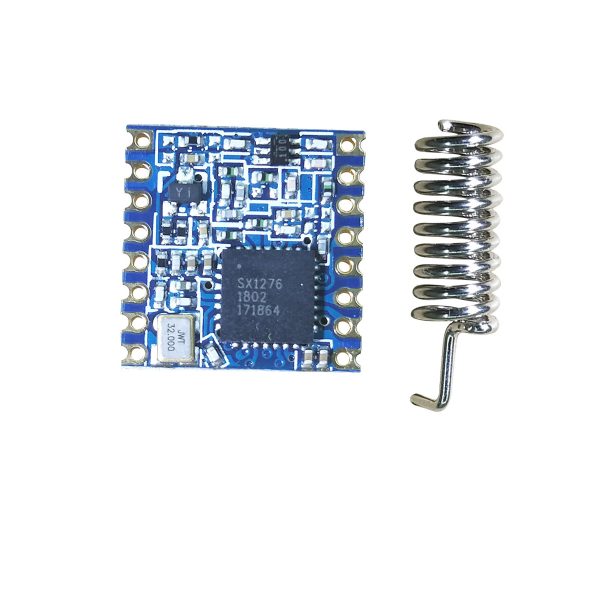

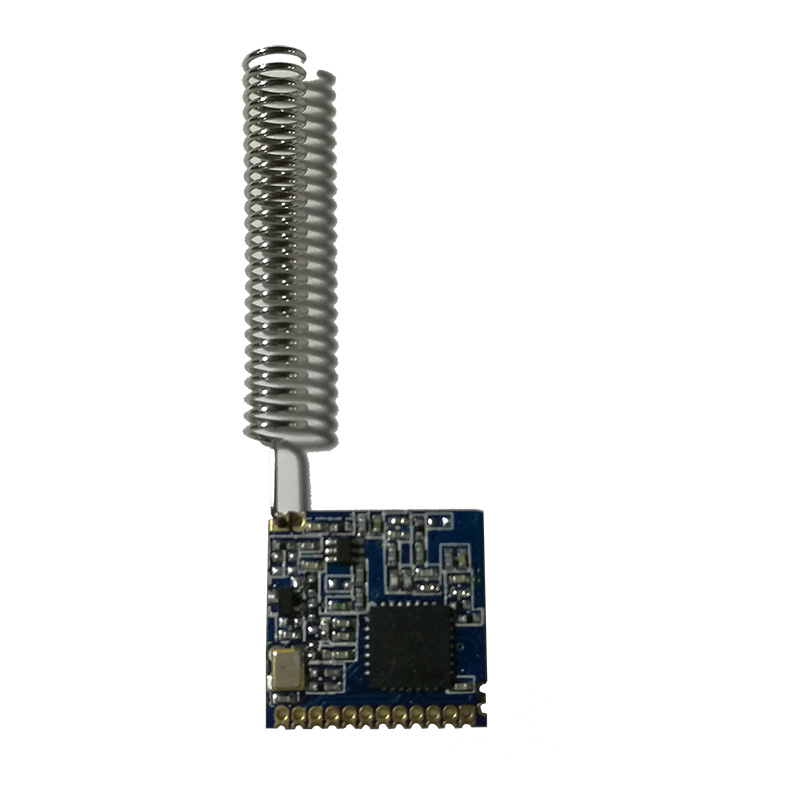

1* SX1278 LoRa Spread Spectrum/Power Meter reading module
1* Spring
